45 KW Heating Capacity Ground Source Heat Pump

45 KW Heating Capacity Ground Source Heat Pump

    • 45 KW Heating Capacity Ground Source Heat Pump
    • 45 KW Heating Capacity Ground Source Heat Pump
    • 45 KW Heating Capacity Ground Source Heat Pump
  • 45 KW Heating Capacity Ground Source Heat Pump

    Product Details:

    Place of Origin: China
    Brand Name: TRT or OEM
    Certification: CE,CB
    Model Number: WSHP 45 KW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: plywood
    Delivery Time: 15-20 days
    Payment Terms: TT
    Supply Ability: 1000 PCS a month
    Minimum Order Quantity: 1 PCS
    Contact Now
    Detailed Product Description





    Brand Name:

    Top Reach

    Model Number:

    TRT-100-WSHP

    Certification:

    CE,IEC,EC,ETL,CETL,C-TICK,WATER MARK,STANDARD MARK,SABS,SANS,SAA,

    Place of Origin:

    China



    Product Name

    Water Source Heat Pump for Hot Water

    application

    Outdoor or Indoor

    Size Of Unit

    1010*590*140

    Resolution



    Color

    Dark Cyan

    Feature

    water Source

    Standard

    CE/ROHS/FCC/SGS

    type

    water to water



    Model No.

    #TRT-060-WSHP

    #TRT-100-WSHP

    #TRT-120-WSHP



    Metal Plate

    SGCC/Spray Gray

    SGCC/Spray Gray

    SGCC/Spray Gray



    Unit Size(W*D*H)

    710*520*1000

    1010*590*1400

    1010*590*1400



    Compressor

    Copeland

    Copeland

    Copeland



    Refrigerator

    R407C

    R407C

    R407C



    Voltage

    380V/50Hz

    380V/50Hz

    380V/50Hz



    Condenser

    Double-pipe φ42

    Double-pipe φ42

    Double-pipe φ42



    1-φ36.5*6000

    2-φ36.5*5400

    2-φ36.5*6000



    Evaperator

    MTB060-41

    MTB060-(37+37)

    MTB060-(41+41)




    Thermostatic Expansion Valve

    Danfoss

    Danfoss

    Danfoss



    AC Contactor

    (220V-25A)

    (220V-18A)*2

    (220V-25A)*2



    Thermal Relay

    (9-13A)*1

    (9-13A)*2

    (9-13A)*2



    Controller

    DF1SS-TS5 System

    DF2SS-TS5 System

    DF1SS-TS5 System



    Motoro1a IC

    Motoro1a IC

    Motoro1a IC



    Low Pressure Switch

    0.15/0.32MPa

    0.15/0.32MPa

    0.15/0.32MPa



    High Pressure Switch

    3.0/3.6MPa

    3.0/3.6MPa

    3.0/3.6MPa



    Wire Insert Unit

    3*6mm2+2*2.5mm2

    3*6mm2+2*2.5mm2

    3*6mm2+2*2.5mm2



    Package

    Plywood CTN

    Plywood CTN

    Plywood CTN



    Heating Capacity(kW)

    24.2

    41.1

    48.8



    Heating Input Power(kW)

    5.02

    8.48

    10.1



    Rated Current(A)

    11.1

    17.6

    20.7



    COP

    4.82

    4.85

    4.83



    Rated Water Temp.Output(℃)

    55

    55

    55



    Max Water Temp.(℃)

    60

    60

    60



    Hot Water Capacity(L/H)

    520.18

    883.45

    1048.96



    Size of Hot Water Pipe(mm)

    DN25

    DN32

    DN32



    Temp.of Water In(℃)

    15

    15

    15



    Temp. Water Source Outlet(℃)

    10

    10

    10



    Water Source Cycling Capacity(m3/H)

    6.7

    11.5

    13.5



    Size of Water Source Pipe(mm)

    DN25

    DN32

    DN32



    Level of protection

    IPX4

    IPX4

    IPX4



    Electric Shock Proof

    I

    I

    I



    Noise(dB(A))

    ≤58

    ≤62

    ≤62



    N.W./G.W.(kg)

    135/145

    280/295

    300/320







    Description:

    1. Strong SGCC Casing Dark Cyan Charming Design;

    2. Smart control double systems;

    3. Danfoss/Copeland/Emerson/Eaton etc. precise accessories are constructing outstanding quality

    & high efficient performance.

    4. Excellent for both hot water, heating & cooling, meeting all demands you need.



    Product inner details:

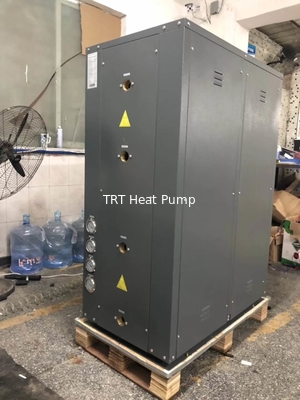

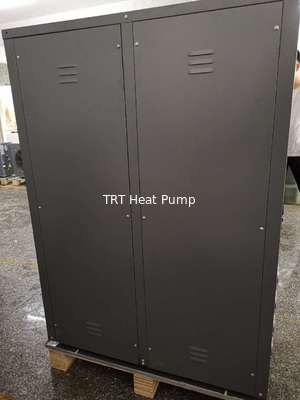

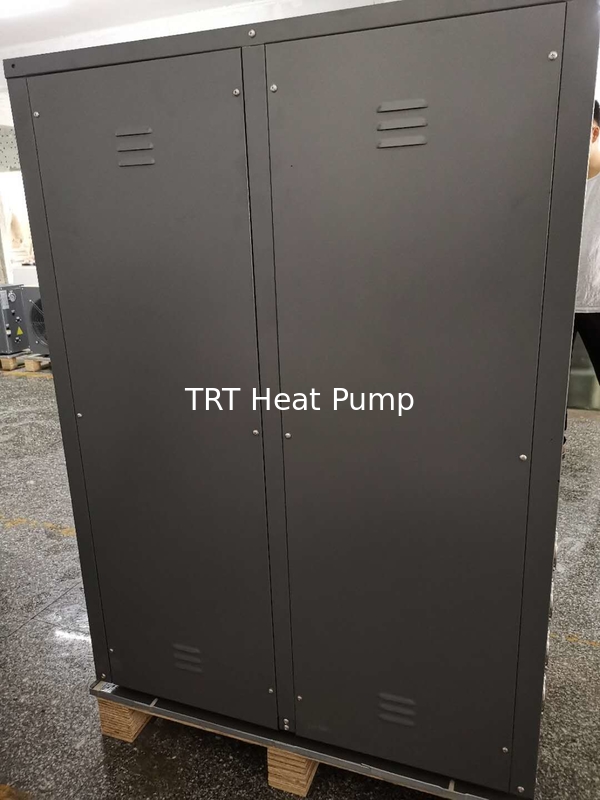

    45 KW Heating Capacity Ground Source Heat Pump



    45 KW Heating Capacity Ground Source Heat Pump45 KW Heating Capacity Ground Source Heat Pump45 KW Heating Capacity Ground Source Heat Pump







    Welcome to visit our website, if you are interested in our heat pumps,please send inquiry to us, we will give you our best support ASAP.
