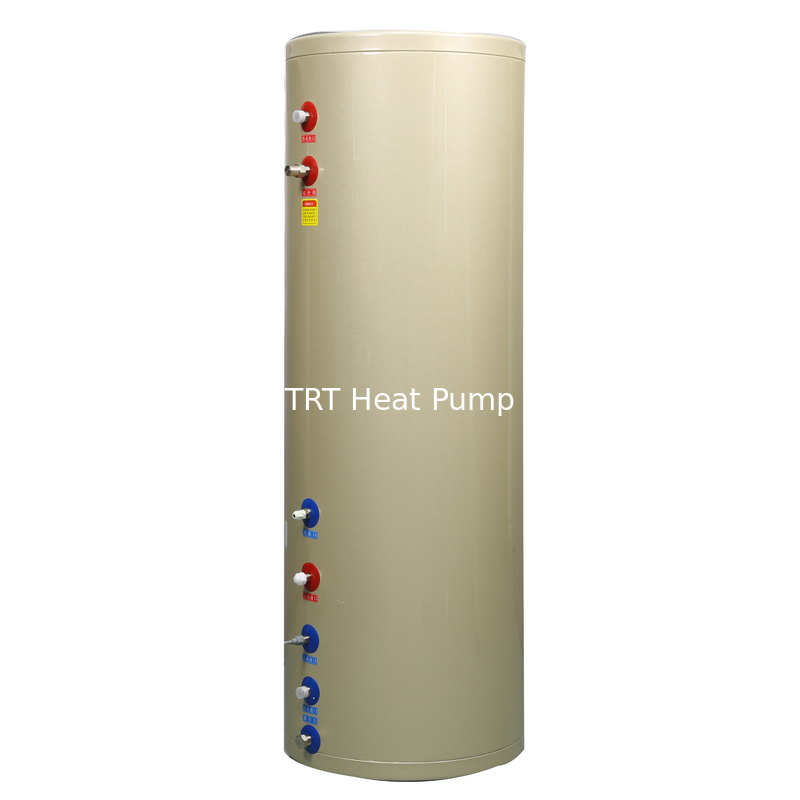

400 L Pressure bearing water tank with 304SUS materials

400 L Pressure bearing water tank with 304SUS materials

400 L Pressure bearing water tank with 304SUS materials

Product Details:

Place of Origin: China
Brand Name: TRT or OEM
Certification: CE,CB
Model Number: 400 L

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: plywood
Delivery Time: 15-20 days
Payment Terms: TT
Supply Ability: 500 pcs
Contact Now
Detailed Product Description

Water tank information:

1.Inner tank: Imported SUS304-2B food-level stainless steel, thickness:1.5~2.5MM

2.Outer tank: High quality color steel, thickness: 0.45~0.5MM

3.Tank cover thickness: 0.5MM

4.Insulation layer: 50MM polyurethane foam

5.Density of tank insulation layer: 35kg/m3

6.Rated working pressure: 0.7Mpa

7.Attachments: Power controlling box, electric heater, Magnesium Stick, P/T valve, pressure reducing valve.





Capacity Inside Water tank size(mm) Cover thickness Polyurethane Insulation Thickness Net Weight(KG) Finished Body Size(mm) Packing Size(mm)
150L ＆1.0*￠370*1430mm 0.5MM 50MM 31 ￠470*1530 540*540*1560
200L ＆1.4*￠420*1480mm 37 ￠520*1580 590*590*1610
260L ＆1.4*￠470*1500mm 45MM 45 ￠560*1600 625*625*1640
300L ＆1.4*￠470*1800mm 54 ￠560*1900 625*625*1920
400L ＆1.8*￠600*1500mm 50MM 62 ￠700*1600 775*775*1690
500L ＆1.8*￠600*1800mm 77 ￠700*1900 775*775*1970
600L ＆1.8*￠600*2000mm 85 ￠700*2100 775*775*2300
800L ＆2.0*￠800*1630mm 120 ￠900*1700 920*920*1900
1000L ＆2.0*￠800*2000mm 150 ￠900*2100 920*920*2300



400 L Pressure bearing water tank with 304SUS materials

400 L Pressure bearing water tank with 304SUS materials

400 L Pressure bearing water tank with 304SUS materials
