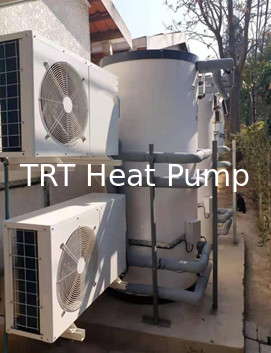

3.5 kW Domestic Air Source Heat Pump; with circulation pump inside

3.5 kW Domestic Air Source Heat Pump; with circulation pump inside

    • 3.5 kW Domestic Air Source Heat Pump; with circulation pump inside
    • 3.5 kW Domestic Air Source Heat Pump; with circulation pump inside
  • 3.5 kW Domestic Air Source Heat Pump; with circulation pump inside

    Product Details:

    Place of Origin: China
    Brand Name: TRT or OEM
    Certification: CE,CB
    Model Number: TRT-1HP,TRT-1.5HP,TRT-2HP,TRT-3HP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: plywood
    Delivery Time: 15-20 days
    Payment Terms: TT
    Supply Ability: 500 pcs
    Contact Now
    Detailed Product Description

    Domestic Air Source Heat Pump

    Model Number TRT-1HP TRT-1.5HP TRT-2HP TRT-3HP
    Power Supply 220-240V/1N/50Hz
    Rated Heating Capacity (KW) 3.6 KW 5.0 KW 7.2KW 12 KW
    Rated Input Power (KW)   0.85KW 1.2KW 1.8KW 2.8KW
    Rated Current (A) 4.0A 6.5A 8.6A 12.7 A
    Max Input Power (KW) 1.16KW 1.7KW 2.48KW 3.6 KW
    Max Current (A) 5.4A 8.4A 11.5A 16.8 A
    Refrigerant/ Charging R417A/ R410A
    Max Exhaust Working Pressure 3.0/4.2Mpa 3.0/4.2Mpa 3.0/4.2Mpa 3.0/4.2Mpa
    Max Suction Working Pressure 0.8Mpa 0.8Mpa 0.8Mpa 0.8Mpa
    Rated outlet water temperature(℃) 55℃ 55℃ 55℃ 55℃
    Rated hot water production 90L/H 112L/H 175 L/H 240 L/H
    Max outlet water Temp(℃) 60℃ 60℃ 60℃ 60℃
    Circulating Water Flow 0.67m³/H 0.99m³/H 1.43m³/H 1.82 m³/H
    Anti-electric shock/ Waterproof Grade I / IPX4 I / IPX4 I / IPX4 I / IPX4
    Water Pipe Size DN20 DN20 DN20 DN20
    Pressure drop ≤15kpa ≤15 kpa ≤25kpa ≤40kpa
    Noise ≤45dB(A) ≤48dB(A) ≤48dB(A) ≤50dB(A)
    Working Enviroment Temp Range -7℃-43℃ -7℃-43℃ -7℃-43℃ -7℃-43℃
    Net Weight 43Kg 45Kg 55Kg 73Kg
    Net Size(MM) 940*285*550 1150*470*680

    3.5 kW Domestic Air Source Heat Pump; with circulation pump inside

    3.5 kW Domestic Air Source Heat Pump; with circulation pump inside

    3.5 kW Domestic Air Source Heat Pump; with circulation pump inside

    3.5 kW Domestic Air Source Heat Pump; with circulation pump inside3.5 kW Domestic Air Source Heat Pump; with circulation pump inside

    3.5 kW Domestic Air Source Heat Pump; with circulation pump inside3.5 kW Domestic Air Source Heat Pump; with circulation pump inside
