    Product Details:

    Place of Origin: China
    Brand Name: TRT or OEM
    Certification: CE,CB
    Model Number: TRT-400-ASHP-R404A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: plywood
    Delivery Time: 15-20 days
    Payment Terms: TT
    Contact Now
    Detailed Product Description

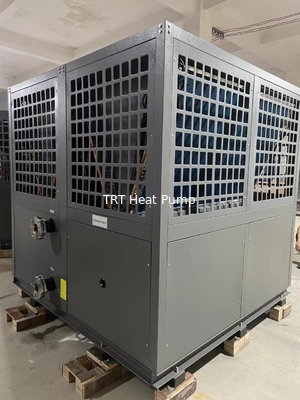

    Air Source Cooling Heat Pump
    Model Number TRT-400-ASHP-R404A
    Compressor ZB76KQE*4
    Power Supply 380V/3N/50Hz
    Rated Cooling Capacity/COP A30W-6 72KW/2.3
    Rated Input Power/ Current 31KW/58A
    Max Input Power/ Current 41KW/78A
    Refrigerant R404A/8000g*4
    Max Discharge Pressure 3.0Mpa
    Max Suction Pressure 0.8Mpa
    Rated Water Outlet Temp -6℃
    Lowest Water Outlet Temp -15℃
    Circulation Water Flow 15.4m³/H
    Anti-Electric Shock/ Water Proof Level I/IPX4
    Water Pipe Size DN65
    Water Pressure Drop ≤65kpa
    Operating Noise ≤72dB(A)
    Working Ambient Temp Range -7℃-43℃
    Net Weight 1100Kg
    Net Size 1850*2000*1950 MM
    Manufacturing Date Refer to Barcode
