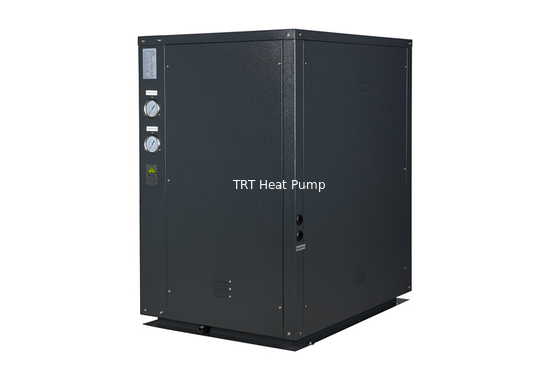

41.1 KW Heating Capacity Ground Source Heat Pump

Brand Name:

Top Reach

Model Number:

TRT-100-DFXRS

Certification:

CE,IEC,EC,ETL,CETL,C-TICK,WATER MARK,STANDARD MARK,SABS,SANS,SAA,

Place of Origin:

China

Product Name

Ground Source Heat Pump for Hot Water

Application

Outdoor or Indoor

Size Of Unit

1010*590*140

Resolution

Color

Dark Cyan

Feature

Ground Source

Standard

CE/ROHS/FCC/SGS

type

Portable

Model No.

#TRT-060-DFXRS

#TRT-100-DFXRS

#TRT-120-DFXRS

Metal Plate

SGCC/Spray Gray

SGCC/Spray Gray

SGCC/Spray Gray

Unit Size(W*D*H)

710*520*1000

1010*590*1400

1010*590*1400

Compressor

Copeland

Copeland

Copeland

Refrigerator

R407C

R407C

R407C

Voltage

380V/50Hz

380V/50Hz

380V/50Hz

Condenser

Double-pipe φ42

Double-pipe φ42

Double-pipe φ42

1-φ36.5*6000

2-φ36.5*5400

2-φ36.5*6000

Evaperator

MTB060-41

MTB060-(37+37)

MTB060-(41+41)

Thermostatic Expansion Valve

Danfoss

Danfoss

Danfoss

AC Contactor

(220V-25A)

(220V-18A)*2

(220V-25A)*2

Thermal Relay

(9-13A)*1

(9-13A)*2

(9-13A)*2

Controller

DF1SS-TS5 System

DF2SS-TS5 System

DF1SS-TS5 System

Motoro1a IC

Motoro1a IC

Motoro1a IC

Low Pressure Switch

0.15/0.32MPa

0.15/0.32MPa

0.15/0.32MPa

High Pressure Switch

3.0/3.6MPa

3.0/3.6MPa

3.0/3.6MPa

Wire Insert Unit

3*6mm²+2*2.5mm²

3*6mm²+2*2.5mm²

3*6mm²+2*2.5mm²

Package

Plywood CTN

Plywood CTN

Plywood CTN

Heating Capacity(kW)

24.2

41.1

48.8

Heating Input Power(kW)

5.02

8.48

10.1

Rated Current(A)

11.1

17.6

20.7

COP

4.82

4.85

4.83

Rated Water Temp.Output(℃)

55

55

55

Max Water Temp.(℃)

60

60

60

Hot Water Capacity(L/H)

520.18

883.45

1048.96

Size of Hot Water Pipe(mm)

DN25

DN32

DN32

Temp.of Water In(℃)

15

15

15

Temp. Water Source Outlet(℃)

10

10

10

Water Source Cycling Capacity(m³/H)

6.7

11.5

13.5

Size of Water Source Pipe(mm)

DN25

DN32

DN32

Level of protection

IPX4

IPX4

IPX4

Electric Shock Proof

I

I

I

Noise(dB(A))

≤58

≤62

≤62

N.W./G.W.(kg)

135/145

280/295

300/320
