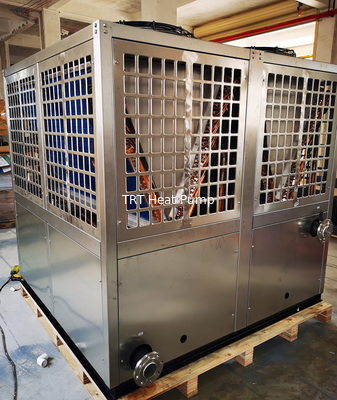

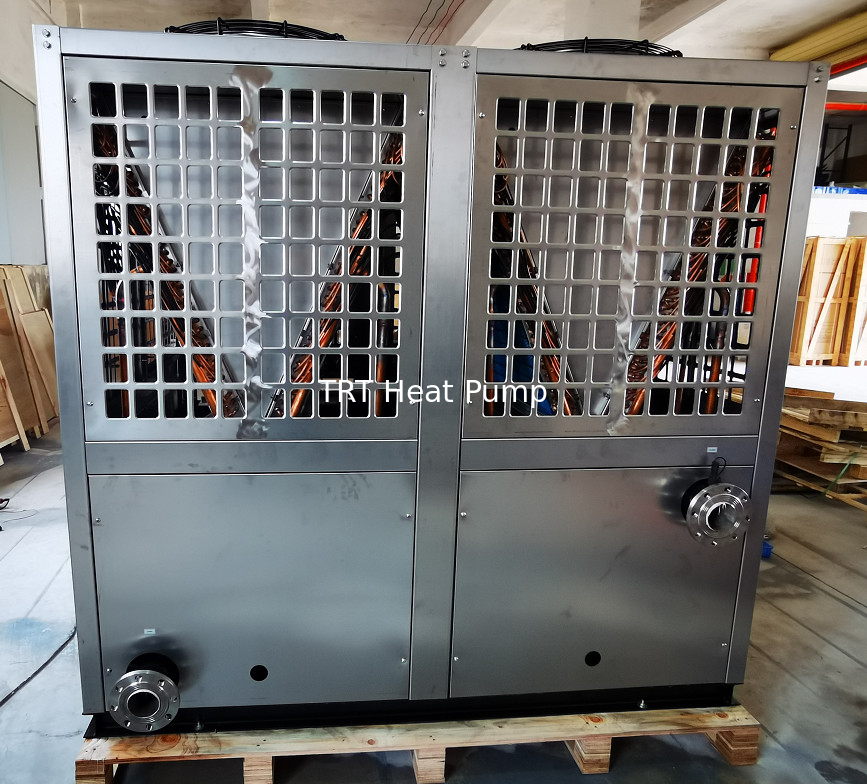

| High Temp Heat Pump |
| Model No. |
TRT-400ASHP-H |
| Power Supply |
380-415V/3N/50Hz |
| Rated Heating Capacity |
120KW |
| Rated Input Power |
38KW |
| Rated Current |
68.7A |
| Max Input Power |
49.4KW |
| Max Current |
102A |
| Refrigerant/ Charging |
R134A/8000g*4 |
| Max Discharge Working Pressure |
3.0Mpa |
| Max Suction Working Pressure |
0.8Mpa |
| Rated water outlet temp/ production |
65℃/2293 L/H |
| Max water outlet temp |
75℃ |
| Circulation water flow |
24 m³/H |
| Unti-electric/ waterproof level |
I/IPX4 |
| Water pipe size |
DN80 |
| water side pressure drop |
≤88kpa |
| Operating Noise |
≤75dB(A) |
| working ambient temp range |
-7℃-43℃ |
| Net Weight |
1000Kg |
| Net Size ( MM) |
1850*2000*1950 |
| Production date |
refer to barcode |
Description
- Environmental friendly and safe
Electric parts and water system is completely cut off, ensuring security water use, no pollution to the atmosphere
and free of greenhouse effect and it is the safest water heater
- Wide climatic zone adaptability
Our heat pumps with special designing possess better climatic adaptability, can work from -25℃ to 43℃.
- Energy-saving
Heat pump water heater is a high efficient transferring heating equipment which is driven by electricity.
The operating cost is only 1/4 of electric water heater, 1/3 of gas water heater.
- Automatic intelligent control system
Adopting intelligent computerized automatic control system, no manual cost, easy to operate, convenient,
make heat pump work safely and reliably.Control panel with modularized unit design can control more flexible
heat pumps packs, with user-friendly operating system interface, easy to operate..
- Advanced testing methods
Adopting world-class Enthalpy potential laboratory to test heat pumps, except basic testing items, we also test heat pump
in the ambient of temperature of -30℃ to test our heat pump performance.
- Widely used
Heat pump is applied to hot water for household and commercial use like families, schools, hospitals, shower center,
swimming pools, etc. and industrial use like electroplating, drying, etc.
Competitive Advantage:
- Military level PCB components, intelligent controlling program reinforced a reliable operation of the heat pump unit.
- Special colored wiring design on the PCB provides great convenience in installation and further maintenance.
- Nitrogenwelding technology purifies the refrigerant pipe system to avoid the inner residue damages to the compressor;
- with extra superior welding flux, it makes welding junction steadier, reduce oxidation of copper pipe, prevent gas leakage.
- Our heat pump outfitting both liquid-storage and gas-liquid separator ensures units run smoothly in different kinds of extreme hostile environment.
- Well selected axial T6 fan motor combined with large fan blade, which provide heavy air blow at low rotate speed,
- reducing vibration and noise.
- High quality contactor and thermal relay can freely turn on/off more than 100,000 times.
Air source heat pump applications:
› Homes, Apartments & Hotels
› Hospitals & Healthcare
› Large retail & Restaurants
› Public buildings, Offices & Commercial
› Sport & Leisure, Small shops
› Warehousing & Storage
