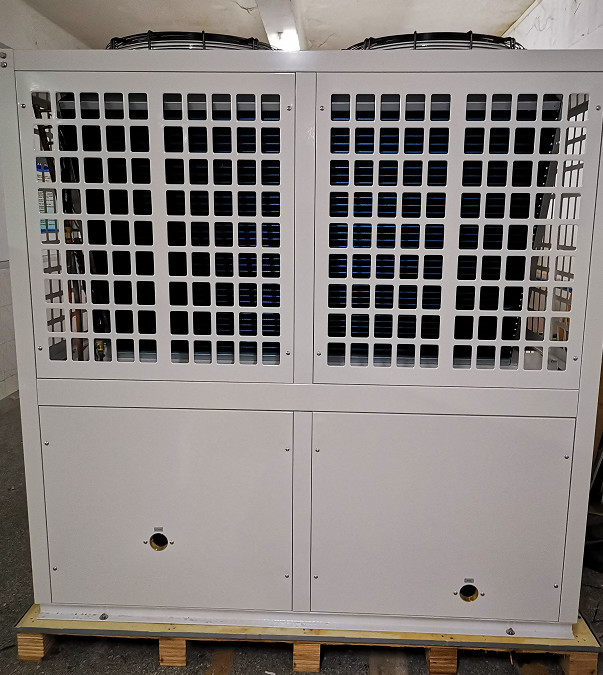

78 KW heating capacity air source heat pump

78 KW heating capacity air source heat pump

    • 78 KW heating capacity air source heat pump
    • 78 KW heating capacity air source heat pump
  • 78 KW heating capacity air source heat pump

    Product Details:

    Place of Origin: China
    Brand Name: TRT or OEM
    Certification: CE,CB
    Model Number: TRT-200ASHP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: plywood
    Delivery Time: 15-20 days
    Payment Terms: TT
    Supply Ability: 1000 PCS a month
    Contact Now
    Detailed Product Description

    R407C Water Cycle Heat Pump
    TRT Model Number TRT-20HP
    Power Supply 380V/3N/50Hz
    Rated Heating Capacity 78KW
    Rated Power Input 19.2KW
    Rated Current 36.5A
    Max Power Input 25KW
    Max Current 47.8A
    Refrigerant R407C/2700g*4
    Max Exhaust Pressure 3.2Mpa
    Max Suction Pressure 0.8Mpa
    Rated Water outlet Temp/ Production 55℃/1548L/H
    Max Water Outlet Temp 60℃
    Circulating Water Flow 15.5m³/H
    Unti-electric / Water-proof level I /IPX4
    Water Pipe Size DN50
    Water pressure drop ≤75kpa
    Operating Noise ≤70dB(A)
    Working Ambient Temp -7℃-43℃
    Net Weight 490Kg
    Net Size(mm) 1850*1000*1950
    Production Date Refer to barcode

    78 KW heating capacity air source heat pump78 KW heating capacity air source heat pump



    78 KW heating capacity air source heat pump

    78 KW heating capacity air source heat pump

    78 KW heating capacity air source heat pump

    78 KW heating capacity air source heat pump

    78 KW heating capacity air source heat pump



    Description



    1. Environmental friendly and safe

    Electric parts and water system is completely cut off, ensuring security water use, no pollution to the atmosphere

    and free of greenhouse effect and it is the safest water heater



    1. Wide climatic zone adaptability

    Our heat pumps with special designing possess better climatic adaptability, can work from -25℃ to 43℃.



    1. Energy-saving

    Heat pump water heater is a high efficient transferring heating equipment which is driven by electricity.

    The operating cost is only 1/4 of electric water heater, 1/3 of gas water heater.



    1. Automatic intelligent control system

    Adopting intelligent computerized automatic control system, no manual cost, easy to operate, convenient,

    make heat pump work safely and reliably.Control panel with modularized unit design can control more flexible

    heat pumps packs, with user-friendly operating system interface, easy to operate..



    1. Advanced testing methods

    Adopting world-class Enthalpy potential laboratory to test heat pumps, except basic testing items, we also test heat pump

    in the ambient of temperature of  -30℃ to test our heat pump performance.



    1. Widely used

    Heat pump is applied to hot water for household and commercial use like families, schools, hospitals, shower center,

    swimming pools, etc. and industrial use like electroplating, drying, etc.





    Competitive Advantage:

    1. Military level PCB components, intelligent controlling program reinforced a reliable operation of the heat pump unit.
    2. Special colored wiring design on the PCB provides great convenience in installation and further maintenance.
    3. Nitrogenwelding technology purifies the refrigerant pipe system to avoid the inner residue damages to the compressor;
    4. with extra superior welding flux, it makes welding junction steadier, reduce oxidation of copper pipe, prevent gas leakage.
    5. Our heat pump outfitting both liquid-storage and gas-liquid separator ensures units run smoothly in different kinds of extreme hostile environment.
    6. Well selected axial T6 fan motor combined with large fan blade, which provide heavy air blow at low rotate speed
