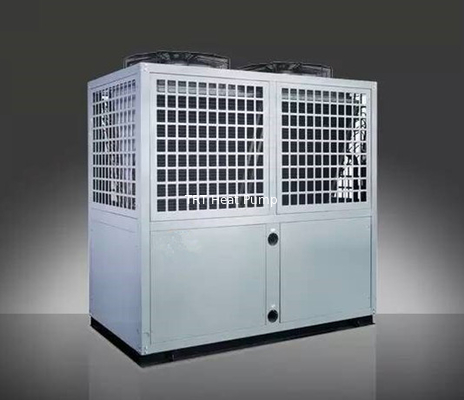

81.2 KW EVI low temperature air source heat pump

81.2 KW EVI low temperature air source heat pump

    • 81.2 KW EVI low temperature air source heat pump
    • 81.2 KW EVI low temperature air source heat pump
    • 81.2 KW EVI low temperature air source heat pump
    • 81.2 KW EVI low temperature air source heat pump
  • 81.2 KW EVI low temperature air source heat pump

    Product Details:

    Place of Origin: China
    Brand Name: TRT or OEM
    Certification: CE,CB
    Model Number: TRT-200LTASHP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: plywood
    Delivery Time: 15-20 days
    Payment Terms: TT
    Supply Ability: 1000 PCS a month
    Contact Now
    Detailed Product Description

    With perfect performance at the ambient temperature as low as -25℃, the units can provide efficient heating for your house and sufficient domestic hot water for your family.

    Brand Name:

    EVI Low Temperature Air Source Heat Pump

    Model Number:

    TRT-200LTASHP

    Certification:

    CE/ROHS/FCC/SGS

    Place of Origin:

    China




    Parameters

    TRT-200LTASHP

    Body size(W*D*H) MM

    2000*1100*2080

    Compressor

    Copeland

    Refrigerant

    R407C

    Power supply

    380V/50Hz

    Condenser

    shell and coil

    Thermostatic expansion valve

    Danfoss

    AC contactor

    (220V-38A)*2

    Controller

     Dual system

    Low-voltage switch

    0.05/0.15MPa

    High-voltage switch

    3.0/3.6MPa

    Power line connect with unit

    3*10mm2+2*4mm2

    20℃

    Heating capacity (kW)

    81.2

    Input power (kW)

    21.4

    Rated current (A)

    35.2

    COP

    3.79

    Production capacity (L/H)

    1745

    -10℃

    Heating capacity (kW)

    48.8

    Input power (kW)

    19.8

    COP

    2.46

    Production capacity (L/H)

    1049

    -20℃

    Heating capacity (kW)

    39.2

    Input power (kW)

    19.6

    COP

    2.00

    Production capacity (L/H)

    843

    -25℃

    Heating capacity (kW)

    36.3

    Input power (kW)

    19.6

    COP

    1.85

    Production capacity (L/H)

    780

    Rated outlet hot water temperature (℃)

    55

    Highest outlet hot water temperature(℃)

    60

    IP Grade (Level of protection)

    IPX4

    Anti-electric shock Rate

    Noise (dB(A))

    ≤66

    Net weight/Gross weight((kg)

    585/645

    Diameter of pipe (mm)

    DN65




    Description


    1. Environmental friendly and safe

    Electric parts and water system is completely cut off, ensuring security water use, no pollution to the atmosphere and free of greenhouse effect and it is the safest water heater


    1. Wide climatic zone adaptability

    Our heat pumps with special designing possess better climatic adaptability, can work from -25℃ to 43℃.


    1. Energy-saving

    Heat pump water heater is a high efficient transferring heating equipment which is driven by electricity. The operating cost is only 1/4 of electric water heater, 1/3 of gas water heater.


    1. Automatic intelligent control system

    Adopting intelligent computerized automatic control system, no manual cost, easy to operate, convenient, make heat pump work safely and reliably.

    Control panel with modularized unit design can control more flexible heat pumps packs, with user-friendly operating system interface, easy to operate..


    1. Advanced testing methods

    Adopting world-class Enthalpy potential laboratory to test heat pumps, except basic testing items, we also test heat pump in the ambient of temperature of  -30℃ to test our heat pump performance.


    1. Widely used

    Heat pump is applied to hot water for household and commercial use like families, schools, hospitals, shower center, swimming pools, etc. and industrial use like electroplating, drying, etc.

    Competitive Advantage:

    1. EVI technology:

    Adopting the most advanced low temp Enhanced Vapors Injection compressor technology which can help heat pump work steadily even at temperature of -25℃.


    1. Wide range of temperature:

    EVI heat pump can work from -25℃.to 43℃. Widely used in different environment.

    3. Higher heating capacity:
    Using enlarging evaporator extracting more heat energy from air will increase COP.


    1. Automatic start-up anti-freezing protection

    When the ambient is below zero degree, the unit is in standby mode more than 30 minutes, Automatic anti-freezing device will be started up so that the unit will be protecting in lower temperature.

    81.2 KW EVI low temperature air source heat pump

    81.2 KW EVI low temperature air source heat pump
